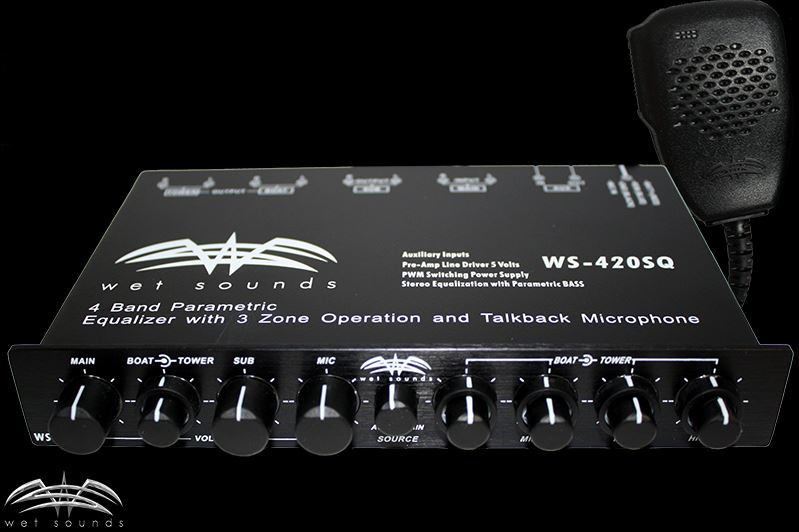

WS-420SQ 4 Band Parametric Equalizer with 3 Zone Operation

$299.99
SKU:
WSELWS420SQ
Brand:
Weight:
3.00 LBS
Availability:
Usually ships same day depending on stock
Shipping:
Free Shipping
Quantity:

Product Description

The WS-420SQ Equalizer is a state of the art equalizer designed to provide amazing control and flexibility of your marine audio system.  The WS-420SQ is 3 Zone equalizer/controller with 2 separate equalizers in one half din chassis using our exclusive design which allows you to independently control the volume of tower speakers, in boat speakers and subwoofers all independently and have EQ adjustments of both in boat and tower speakers independently. The WS-420SQ is the world’s only true marine audio zone controller/equalizer. The Wet Sounds talk back microphone allows the boat driver to communicate with the rider or other boats in the area. By pushing the button on the microphone, the system will automatically mute the music playing from the tower speakers and allow you to use your tower speakers as a PA system. Once the button is released, the tower speakers will begin to play again at the level they were at. Additionally, the WS-420SQ includes Wet Sounds exclusive Boat Link™. Boat Link gives you the ability to link up with other WS 420SQ equipped boats for the ultimate party cove experience.






The WS-420SQ is 3 Zone equalizer/controller with 2 separate equalizers in one half din chassis using our exclusive design which allows you to independently control the volume of tower speakers, in boat speakers and subwoofers all independently and have EQ adjustments of both in boat and tower speakers independently. The WS-420SQ is the world’s only true marine audio zone controller/equalizer. The WS-420SQ gives you ultimate control over your system. The
WS-420SQ allows you to have any combination you wish. In boat speakers and subwoofer playing with no tower speakers, tower speakers and subwoofer playing with no in boats, all speakers playing, max volume from the tower and subwoofer with half volume from the in boats and many other configurations. The WS-420SQ includes a talk back microphone for rider communication. The level of the talk back microphone is independent from your music level allowing you to adjust the volume for the PA function. The microphone feature only plays through the tower speakers. When the microphone is keyed up, the music is muted for announcements. After the key is released, the music will resume at previous level. The WS-420SQ has a large knob master volume control giving you quick control for the overall system. You are able to set the other zones to whichever volume level you desire and have one knob for quick overall volume adjustment. There are two separate 4 band equalizers. The outer ring makes adjustments for the tower speakers and inner knob makes adjustments for the in boat speakers.


1. Main Volume: This is the Master Volume that controls the overall volume of all zones.

2. In Boat and Tower Zone Volume
: Adjusts the volume of the tower speakers (outside ring) and the volume of the in boat speakers (inside knob) You can set these levels to whichever volume you prefer and use the master volume for overall control.


3. Subwoofer Volume: Independent Subwoofer volume control.

4. Microphone: Independent Talk Back Microphone volume control.

5. Aux/Main Switch: Auxiliary input or main input selection switch.

6. Equalizer Adjustments: These 4 controls adjust the four separate frequencies (bass, mid bass, mid, high) Offering 12 dB of cut/boost. The outside ring adjusts the frequencies for the tower speakers (6a) while the inside ring adjusts the frequencies for the in boat speakers (6b).

7. Auxiliary Input: 3.5 mm aux input jack for MP3 player or additional source.

8. Boat Link™ 3.5 mm aux output jack: For linking with other WS-420 equipped boats.

9. Microphone Input: Microphone input for Wet Sounds talk back microphone.

10: Input Gain:

10(a) Main Input Sensitivity Gain adjustment.

10(b) Auxiliary Input Sensitivity Gain adjustment. NOTE: If you are not an experienced audio installer, it is recommend to leave these adjustments in the pre set factory position.

11: Illumination: WS-420SQ illumination comes pre set in blue illumination If you would like to change to red. Remove jumper and position to red.

12: Ground Isolation: Occasionally alternator whine may appear in your system if you source unit and amplifiers may have different grounds. You may use the isolation jumper to eliminate the noise. Please make sure unit is off when adjusting the jumper.



Description Value Downloads (in PDF format)
Bass Equalizer Frequency 100 Hz
User Manual
Mid Bass Equalizer Frequency 300 Hz
Mid Equalizer Frequency 2 Khz
Hi Equalizer Frequency 15 Khz
Parametric Equalizer Range + 12 dB
S/N Ratio 80 dB REF 1V Input
Frequency Response 10 Hz - 40 Khz, -3dB
Maximum Output Voltage 5V RMS
T.H.D. 0.05%
Input Impedance 20 K Ohms
Stereo Separation 80 dB/1 Khz
Operational Voltage 11 - 15V DC, Negative Gnd



Warranty Information

“Limited Warranty” Wet Sounds 2-Year Limited Warranty (Effective For Purchases October 2015 And After) What This Warranty Covers This is a "Limited" warranty. This warranty covers any defects in materials and workmanship and warranty only applies to the original purchaser and is not transferable. This warranty is also only valid if the original purchase was made from an authorized Wet Sounds™ dealer. How Long Coverage Last This warranty runs for two years from the date of the purchase. It is recommended to REGISTER your warranty online within 45 days of your purchase at www.wetsounds.com - click on "warranty registration". What Is Not Covered This warranty does not cover fading or discoloration caused by exposure to sunlight or chemicals such as ammonia, household bleach, or any cleaning material that contains abrasive substances. (For information on how to prevent fading or discoloration, consult for recommendations on cleaning products) Wet Sounds, Inc. does not cover the cost for removal and reinstallation of any kind. Additionally, shipping TO Wet Sounds, Inc. is covered by the purchaser This warranty is void and inapplicable if Wet Sounds™ deems that the product was abused or misused; including but not limited to Speaker product that has been improperly-powered (under or over powered), causing thermal (burnt voice coil) and/or mechanical failure (torn surrounds or spiders), damage caused by accident, mishandling, improper installation, negligence, normal wear and tear, excessive water or heat damage, freight damage or products that have been altered in any way. Product owned by anyone other than the original purchaser from an authorized Wet Sounds dealer. (The warranty is not transferable and will not apply to products purchased from unauthorized dealers.) Wet Sounds is not responsible for any damages to a consumer's boat or person from a product failure. The warranty is void if Wet Sounds deems the product was installed or used improperly. Wet Sounds shall not be responsible for any incidental or consequential damages, except to the< extent provided (or prohibited) by applicable law. This warranty gives you specific legal rights, and you may also have other rights which vary from state. What Wet Sounds™, Inc. Will Do Wet Sounds, Inc will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, Wet Sounds, Inc will replace the product in question. If it is deemed necessary Wet Sounds, Inc. will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price if that model is no longer available. Labor cost and materials needed to complete this service will be at no charge to the purchaser. Additionally, the cost of shipping TO the consumer is also covered under this warranty. How to Obtain Warranty Service Contact Wet Sounds, Inc. either by phone at 877-938-7757 or by email at warranty@wetsounds.com. A service representative will assist you in the necessary actions to verify that the problem that you are experiencing is covered under warranty. If it is in fact a warranty issue, Wet Sounds will issue an RA number for tracking purposes and give instructions on sending the product in for evaluation. Wet Sounds™, Inc. How State Law Applies This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Internet Warning Wet Sounds, Inc. products sold on any non authorized web site or internet auction site are void of any and all manufacturer's warranty. Please contact Wet Sounds™ at 877-938-7757 or visit our web site at www.wetsounds.com to search for an authorized site and/or an authorized retailer near you.
