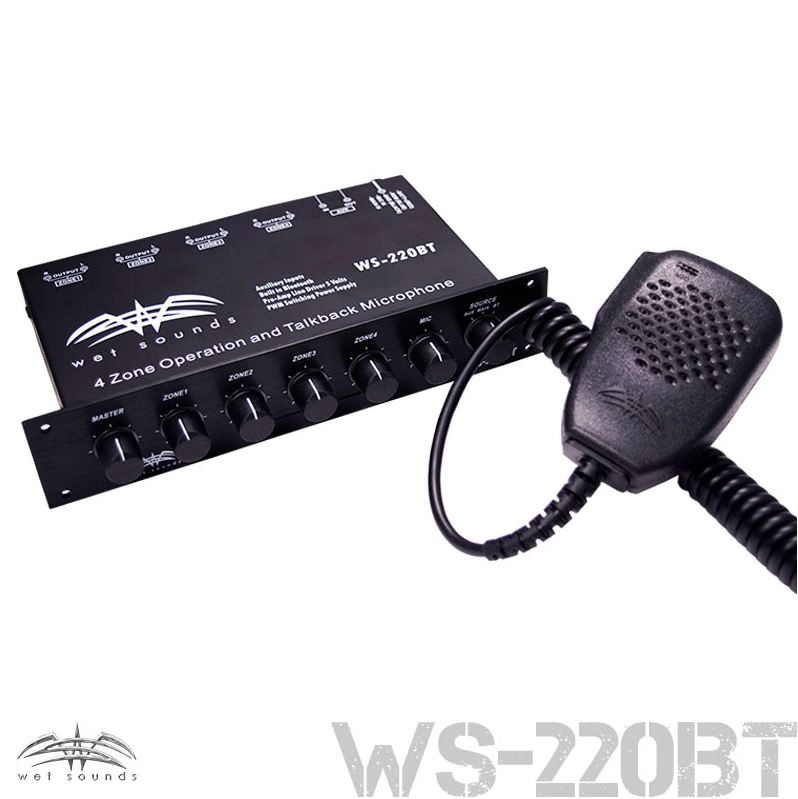

WS-220 BT 4-Zone Level Controller with Bluetooth

Retail $399.99 **Call for pricing
SKU:
WS220BT
Brand:
Weight:
3.00 LBS
Availability:
Usually ships within 1 day depending on stock
Shipping:
Free Shipping

Product Description

For total control over your Wet Sounds system, look to the WS-220 BT 4 Zone Level Controller with Bluetooth. The WS-220 BT allows independent control of four separate audio zones and a simple master volume control. All four zones are equal and can be set up to control your favorite Wet Sounds amplifiers to fed zones such as our tower speakers, cabin speakers and subwoofers. The WS-220 BT is designed to give a user ultimate control at their fingertips over any Audio System.

Equipped with a talkback microphone, the WS-220 BT automatically mutes the music on Zone 1 when the Talk Button is pressed. This allows for communication over a wide area, then reverts back to the music when the talk button is released.

You can choose to listen to music from a main source unit or an auxiliary input and for maximum versatility, the WS-220 BT also includes Bluetooth compatibility for wireless steaming convenience from your smartphone, or any other Bluetooth enabled device. All three sources have independent gain adjustments for the perfect matched output on any source.

The WS-220 BT also includes the exclusive Wet Sounds Wired Audio Link, which allows you to connect your audio with other Wet Sounds equipped systems for the ultimate party experience!



Features:



The WS-220 BT is a 4 Zone level controller with built in Bluetooth.  Utilizing the CSR BT 4.0 with AptX codec for the highest sound quality available.  Main and Auxiliary inputs built in as well for true 3 source selection all housed in a one half DIN chassis.  Using our exclusive design which allows the independent control of 4 zones which can be assigned to any audio components in a system. For instance, Zone 1 could be set up for Tower Speakers, Zone 2 could be used for Front Cabin Speakers, Zone 3 could be Rear Cabin Speakers, and Zone 4 could be Subwoofer(s). Levels can be set for each of these zones independently, then the Master allows overall control of all 4 zones. The WS-220 BT includes a talk back microphone with its own independent level control, allowing the adjustment of the microphone level independently of the music. The talk back microphone can be used to broadcast a voice over long distances – similar to a public address system. When the talk button on the microphone is pressed, music is automatically muted on Zone 1 and the microphone audio is broadcast over Zone 1. When the microphone talk button is released, music returns to the previous level.


1. Master Level. This controls the overall volume of the system – overriding all zones with the exception of the Mic level control.

2. Zone 1. This controls the level of whatever amplifier is connected to it. Microphone audio is broadcast on this zone only, so it is suggested that this zone be used for Tower Speakers. The Master Level control overrides this zone control.

3. Zones 2-4. These control whatever amplifiers are connected to them. These zones are equal in operation, so they can be assigned in any way needed. The Master Level overrides all these zones.

4. Mic. This controls the level of the microphone when the talkback button is pressed. Mic level is unaffected by the Master level control.

5. Source. Allows switching between Main (head unit), Auxiliary (wired audio device), or
Bluetooth enabled wireless device.

6. Auxiliary Input. 3.5 mm input jack for MP3 player or additional wired audio source.

7. Boat Link. 3.5mm output jack. For linking with other WS-220BT, WS-420BT/SQ
equipped systems.

8. Microphone Input. This is where the included talk back microphone should be
connected.

9. Input Gain.
9(a) Main input sensitivity adjustment.
9(b) Aux input sensitivity adjustment.
9.(c) Bluetooth input sensitivity adjustment. These are to properly match the inputs of the WS-220 BT to the outputs of the sources connected.
NOTE: If you are not an experienced installer, it is recommended to leave these adjustments in the preset factory position.

10. Illumination. WS-220 BT comes preset in blue illumination mode. If red is preferred, set this switch to the position marked “RED”.

11. Ground Isolation.
If alternator whine appears in the system, the jumper position can be changed to even the grounding levels and eliminate the noise. Be sure the system is off before adjusting the jumper!



Wired Audio Link Illumination: Red or Blue
Background Illumination
Talkback Microphone Bluetooth
Wired Audio Link WS-220 Illumination WS-420 Talkback Microphone Bluetooth

Master Volume Control 4 Zone Control 4 Zone Control Input Selection
Master Volume Control 4 Zone Control 4 Zone Control Input Selection

Conformal Coated PCB  Easy Mounting 5 Volt Line Driver Highest Grade Op Amps
and Output Devices
Conformal Coated PCB  Easy Mounting  5 Volt Line Driver Conformal Coated PCB



Description Value Downloads (in PDF format)
S/N Ratio 80dB @ 1V Input
WS-220BT User Manual
Frequency Response 10 Hz - 40 kHz
Max Output Voltage 5V RMS
T.H.D. 0.05%
Input Impedence 20K Ohms
Operational Voltage 11-15V DC,
Negative Ground
Chassis Dimensions 6 7/8” W x 1” H x 5” D
Faceplate Dimensions 8” W x 1 5/8” H











Warranty Information

“Limited Warranty” Wet Sounds 2-Year Limited Warranty (Effective For Purchases October 2015 And After) What This Warranty Covers This is a "Limited" warranty. This warranty covers any defects in materials and workmanship and warranty only applies to the original purchaser and is not transferable. This warranty is also only valid if the original purchase was made from an authorized Wet Sounds™ dealer. How Long Coverage Last This warranty runs for two years from the date of the purchase. It is recommended to REGISTER your warranty online within 45 days of your purchase at www.wetsounds.com - click on "warranty registration". What Is Not Covered This warranty does not cover fading or discoloration caused by exposure to sunlight or chemicals such as ammonia, household bleach, or any cleaning material that contains abrasive substances. (For information on how to prevent fading or discoloration, consult for recommendations on cleaning products) Wet Sounds, Inc. does not cover the cost for removal and reinstallation of any kind. Additionally, shipping TO Wet Sounds, Inc. is covered by the purchaser This warranty is void and inapplicable if Wet Sounds™ deems that the product was abused or misused; including but not limited to Speaker product that has been improperly-powered (under or over powered), causing thermal (burnt voice coil) and/or mechanical failure (torn surrounds or spiders), damage caused by accident, mishandling, improper installation, negligence, normal wear and tear, excessive water or heat damage, freight damage or products that have been altered in any way. Product owned by anyone other than the original purchaser from an authorized Wet Sounds dealer. (The warranty is not transferable and will not apply to products purchased from unauthorized dealers.) Wet Sounds is not responsible for any damages to a consumer's boat or person from a product failure. The warranty is void if Wet Sounds deems the product was installed or used improperly. Wet Sounds shall not be responsible for any incidental or consequential damages, except to the< extent provided (or prohibited) by applicable law. This warranty gives you specific legal rights, and you may also have other rights which vary from state. What Wet Sounds™, Inc. Will Do Wet Sounds, Inc will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, Wet Sounds, Inc will replace the product in question. If it is deemed necessary Wet Sounds, Inc. will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price if that model is no longer available. Labor cost and materials needed to complete this service will be at no charge to the purchaser. Additionally, the cost of shipping TO the consumer is also covered under this warranty. How to Obtain Warranty Service Contact Wet Sounds, Inc. either by phone at 877-938-7757 or by email at warranty@wetsounds.com. A service representative will assist you in the necessary actions to verify that the problem that you are experiencing is covered under warranty. If it is in fact a warranty issue, Wet Sounds will issue an RA number for tracking purposes and give instructions on sending the product in for evaluation. Wet Sounds™, Inc. How State Law Applies This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Internet Warning Wet Sounds, Inc. products sold on any non authorized web site or internet auction site are void of any and all manufacturer's warranty. Please contact Wet Sounds™ at 877-938-7757 or visit our web site at www.wetsounds.com to search for an authorized site and/or an authorized retailer near you.
