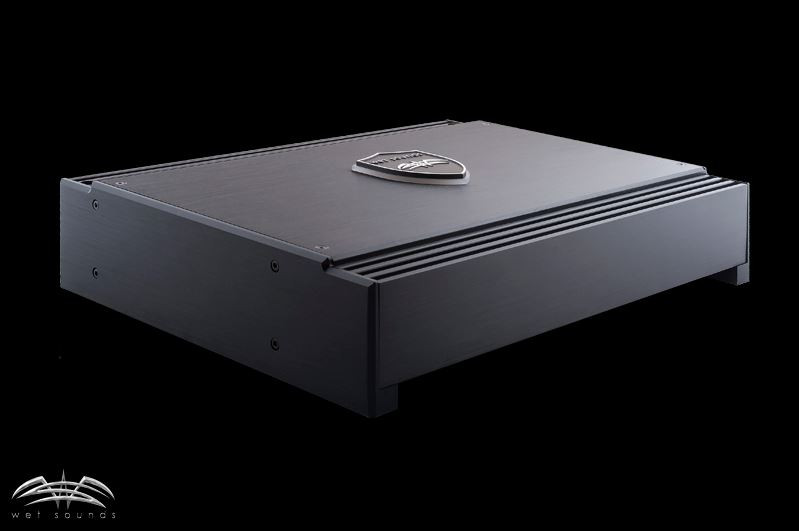

Sinister 4 Channel Amplifier

$1,099.99
SKU:
SD4: 4 Channel Amplifier
Brand:
Weight:
13.00 LBS
Availability:
Usually ships same day depending on stock
Shipping:
Free Shipping
Quantity:

Product Description

The Sinister  amplifiers use superior performance circuitry by utilizing Wet Sounds exclusive Class D Power Supplies combined with Wet Sounds MAXED™ Power supply.  The MAXED power supply is a patent pending technology designed to provide high efficiency levels never thought to be achievable in a mobile audio amplifier.  What this means to you.  Less current draw, less strain on the electrical system, less generated heat.  All this results in more play time!   The Sinister amplifiers share one size full cast aluminum chassis for all models making installation a breeze and the ability to have a clean install.

The Sinister  amplifiers use superior performance circuitry by utilizing Wet Sounds exclusive Class D Power Supplies combined with Wet Sounds MAXED™ Power supply.  The MAXED power supply is a patent pending technology designed to provide high efficiency levels never thought to be achievable in a mobile audio amplifier.  What this means to you.  Less current draw, less strain on the electrical system, less generated heat.  All this results in more play time!   The Sinister amplifiers share one size full cast aluminum chassis for all models making installation a breeze and the ability to have a clean install.

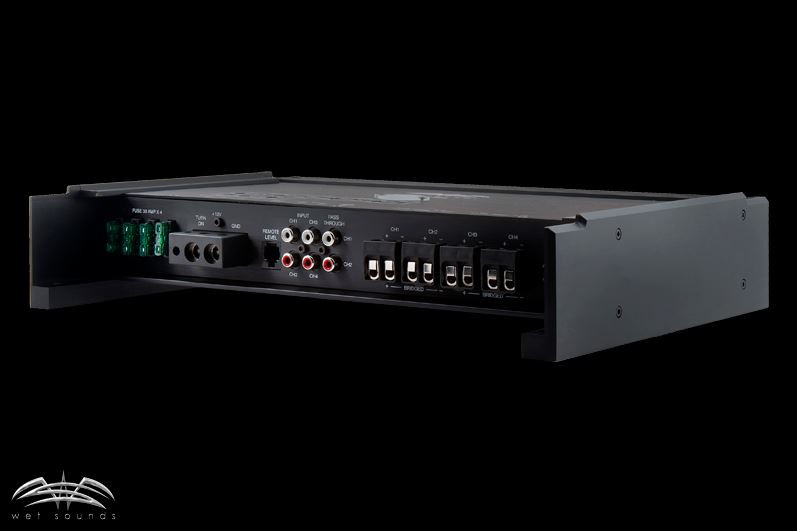

All Sinister amplifiers feature a fully conformal coated 4 layers pcb board, single side
power, speaker and input section, and top mounted controls with removable cover.
Sinister amplifiers have a back lit Wet Sounds shield logo with selectable illumination for red, white or blue that can be mounted horizontally or vertically for flexible amplifier placement.
Other features include high pass/low pass/full range crossovers, flexible inputs source selection for single or multiple RCA channel input, RCA pass through on 4ch and 2ch, and removable speaker plugs that accept large gauge wire. The sinister amplifiers are not only extremely powerful but also intelligent with a built in microprocessor controller for over voltage protection, under voltage protection, DC offset and speaker short protection, as well as thermal rollback to ensure consistent play in the harsh marine environment.


Description Value Downloads (in PDF format)
Full Range Class D Amplifier
PDF User Manual







Output Power (RMS) @ 1% 1000Hz 14.4V CEA 2006
Stereo @ 4 Ohms 4 x 185 Watts @ 60A
Stereo @ 2 Ohms 4 x 340 Watts @ 123A
Mono @ 4 Ohms 2 x 685 Watts @ 122A
Frequency Response 3dB - 8 Hz - 35 kHz
Crossover Range High and Low Pass 30Hz - 300Hz 12dB/Octave
Bass Boost 0-12.5dB @ 27Hz - 110Hz
S/N Ratio (A wtg) >90dB >113dB
Input Sensitivity Low Level 0.2V - 6.1V
Remote Level Range 0 db to -61 db
15.6V Overvolt Protection







Warranty Information

“Limited Warranty” What This Warranty Covers This is a "Limited" warranty. This warranty covers any defects in materials and workmanship and warranty only applies to the original purchaser and is not transferable. This warranty is also only valid if the original purchase was made from an authorized Wet Sounds™ dealer. How Long Coverage Last This warranty runs for one year from the date of the purchase. It is recommended to REGISTER your warranty online within 45 days of your purchase at www.wetsounds.com - click on "warranty registration". What Is Not Covered This warranty does not cover fading or discoloration caused by exposure to sunlight or chemicals such as ammonia, household bleach, or any cleaning material that contains abrasive substances. (For information on how to prevent fading or discoloration, consult for recommendations on cleaning products) Wet Sounds, Inc. does not cover the cost for removal and reinstallation of any kind. Additionally, shipping TO Wet Sounds, Inc. is covered by the purchaser This warranty is void and inapplicable if Wet Sounds™ deems that the product was abused or misused; including but not limited to Speaker product that has been improperly-powered (under or over powered), causing thermal (burnt voice coil) and/or mechanical failure (torn surrounds or spiders), damage caused by accident, mishandling, improper installation, negligence, normal wear and tear, excessive water or heat damage, freight damage or products that have been altered in any way. Product owned by anyone other than the original purchaser from an authorized Wet Sounds dealer. (The warranty is not transferable and will not apply to products purchased from unauthorized dealers.) Wet Sounds is not responsible for any damages to a consumer's boat or person from a product failure. The warranty is void if Wet Sounds deems the product was installed or used improperly. Wet Sounds shall not be responsible for any incidental or consequential damages, except to the< extent provided (or prohibited) by applicable law. This warranty gives you specific legal rights, and you may also have other rights which vary from state. What Wet Sounds™, Inc. Will Do Wet Sounds, Inc will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, Wet Sounds, Inc will replace the product in question. If it is deemed necessary Wet Sounds, Inc. will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price if that model is no longer available. Labor cost and materials needed to complete this service will be at no charge to the purchaser. Additionally, the cost of shipping TO the consumer is also covered under this warranty. How to Obtain Warranty Service Contact Wet Sounds, Inc. either by phone at 877-938-7757 or by email at warranty@wetsounds.com. A service representative will assist you in the necessary actions to verify that the problem that you are experiencing is covered under warranty. If it is in fact a warranty issue, Wet Sounds will issue an RA number for tracking purposes and give instructions on sending the product in for evaluation. Wet Sounds™, Inc. How State Law Applies This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Internet Warning Wet Sounds, Inc. products sold on any non authorized web site or internet auction site are void of any and all manufacturer's warranty. Please contact Wet Sounds™ at 877-938-7757 or visit our web site at www.wetsounds.com to search for an authorized site and/or an authorized retailer near you. Caution & Respect Wet Sounds™ speakers can achieve very high sound pressure levels. Please use this product responsibly. Be aware that sound travels great distances across water so please respect other boaters especially while loading/unloading at the ramp or dock. Wet Sounds, Inc. is not responsible for any violations of the law that may be a direct result of excessive volume. Please abide by the rules but have fun doing it.
