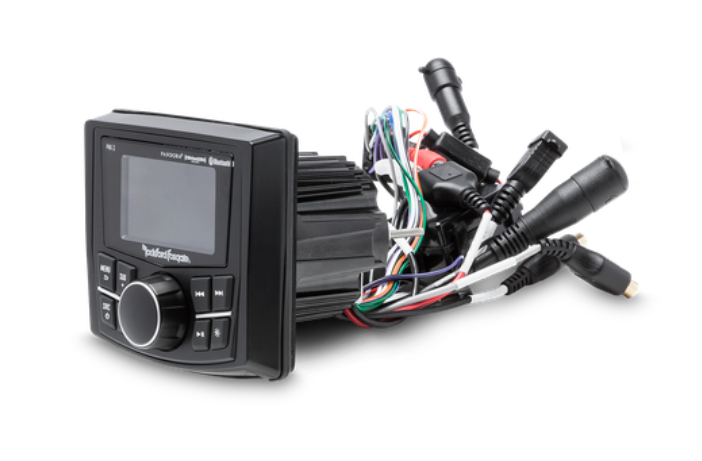

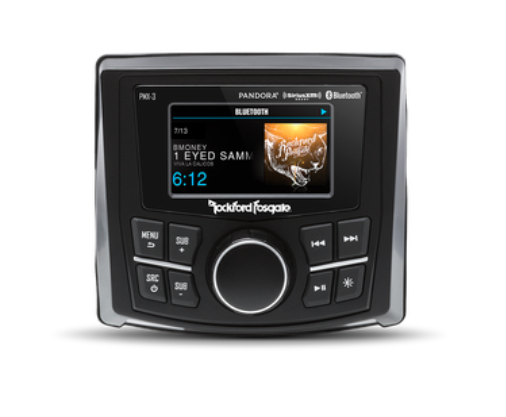

Rockford Fosgate PMX-3 Compact Digital Media Receiver w/ 2.7" Display

Overview
Other Details
Reviews

Product Description

The PMX-3 compact digital media receiver, designed for marine and motorsports applications, features a 2.7"full color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent any dust or moisture penetration.

The PMX-3 is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such SiriusXM tuner compatibility, Pandora control capabilities and Bluetooth audio steaming with album art support for Apple and Android products, this unit becomes a true command center of any system. Output flexibility comes with a 4x50 @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of aftermarket amplifiers for more power and output.

We've also upgraded the unit to feature a reverse camera composite video input with reverse trigger control and a day/ night display mode for better viewing in low light conditions. Finally, add in the EEprom memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need.

2.7" Full color Thin Film Transistor display
SiriusXM-Ready™ (SXV300 module) with color channel logos (18 channel presets)
Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
Integrated voltage gauge w/ low voltage alert
Wired remote ready (up to 3 remotes)
Two-piece mounting system to secure panel to mounting surface
Front Panel Sub Control
Upgradeable Firmware and Bluetooth Software via USB
IPX6 Water Intrusion Rating: Water projected in powerful jets from any direction shall have no harmful effects
ASTM: B117 Salt Fog & D4329 UV Exposure Tested
Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt
Internal power amplifier 4x45W 2Ω stable
Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive broadcast information
Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)
Made for iPhone apple certified
Bluetooth streaming audio (A2DP) protocol version 1.4 installed
Rear USB With 1A Charging Only
Rear AUX-In (L/R)
Simple Secure Pairing (SSP)
Display album art from connected iPhones on the radio display
Folder browsing via BT connected iPhones
Dedicated DSP audio processors for each zone with independent 7 Band EQ + Punch EQ
Selectable high pass and low pass crossover points for each zone
Selectable crossover slopes of 12dB or 24 dB for each zone
Adjustable input gain for each source
Waterproof Rotary Encoder Volume Control
Tactile convex buttons for easy identification
White LED Button Illumination
Wired and front panel illumination control
Wet Bonded Display
Epoxy coated circuit board for water resistance
External trigger input to activate reverse camera mode
Direct composite video input connection
Day/Night display mode
2 Year Warranty

Pandora®

Pandora® (also known as Pandora Internet Radio) is a music streaming

and automated music recommendation service.

Built In Bluetooth®

SiriusXM-Ready®

Made for Android Made for iPod/iPhone USB Playback

FM TUNER
Frequency Range

87.5 MHz - 107.9 MHz

FM TUNER
Sensitivity

8 dB

AM TUNER
Frequency Range

530 kHz - 1710 kHz

AM TUNER
Usable Sensitivity

40 dB

RCA Output Voltage

4 V

RCA Output Impedance

500Ω

Speaker Impedance

2-Ohms

Power Output

CEA-2006 Power Rating
25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω Peak
≤1.0% THD+N

Fuse Rating

20 A

Dimensions (HxWxD)

Width 4.5" (11.5cm)
Face Depth 1.5" (3.8cm)
Mount Depth 2.9" (7.4cm)
Height 4.2" (10.6cm)

MEDIA PLAYER
Audio Format Compatibility

MP3, WMA

TUNER

Clock

Yes

Compatible Remotes

PMX-1R
PMX-0R
(3 Remote Limit, 100 ft Total Wired Distance)

Speaker Outputs

Yes

Made for iPod Models

iPod Touch (5th generation)
iPod Touch (4th generation)
iPod Nano (7th generation)
iPod Nano (6th generation)

Android Compatibility

Bluetooth® Only

SPEAKER OUTPUTS

RCA OUTPUTS

Device Type

Digital-Media Receiver

SiriusXM-Ready®

Yes

WB TUNER
Frequency Range

162.40 - 162.55
(US & Canada)

TUNER
Number Of Presets

18 FM / 12 AM / 6 WB

USB Version

2.0

AUX Input

Yes

Steering Wheel Control Ready

Multi-Zone/Multi-Source

Operating Voltage

10.5 V - 16 V

USB Capacity

32Gb max
999 Folders max
999 Songs max

Display Size

2.7” Color TFT

Pandora® Internet Radio

Yes

Bluetooth®

Yes
3.0+EDR, A2DP 1.3

USB Output Current

USB Charging

Yes

FEATURES

GENERAL

Frequency Response

20 Hz - 20 kHz

Made for iPhone Models

iPhone 7 Plus
iPhone 7
iPhone 6s Plus
iPhone 6s
iPhone 6 Plus
iPhone 6
iPhone 5S
iPhone 5C
iPhone 5
iPhone 4S
iPhone 4
iPhone 3GS

Apple®/Android™ Compatible

Yes

Other Details

Rockford Corporation offers a limited warranty on Rockford Fosgate products: Length of Warranty • All Speakers – 1 Year • Signal Processors – 1 Year • PRIME Amplifiers – 1 Year • PUNCH Amplifiers – 1 Year • POWER Amplifiers – 2 Years • Any Factory Refurbished Product – 90 days (receipt required) What is Covered This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation. Who is Covered This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion. What is Not Covered 1. Damage caused by accident, abuse, improper operations, water, theft 2. Any cost or expense related to the removal or reinstallation of product 3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center 4. Any product which has had the serial number defaced, altered, or removed 5. Subsequent damage to other components 6. Any product purchased outside the U.S. 7. Any product not purchased from an Authorized Rockford Fosgate Dealer Limit on Implied Warranties Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product. How to Obtain Service Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford. EU Warranty This product meets the current EU warranty requirements, see your Authorized dealer for details. Warranty Outside the USA The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country. Ship to: Electronics and Speakers Rockford Corporation AJR International 300 Regency Dr. Glendale Heights, IL 60139 NOTICE: Products shipped to the above addresses without an RA# will be refused and shipped back.
