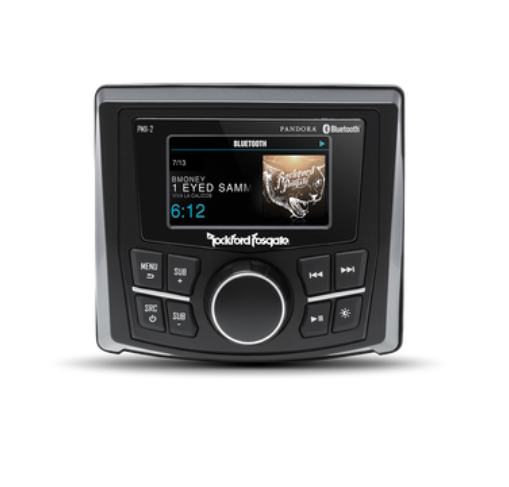

Rockford Fosgate PMX-2 Punch Marine Compact AM/FM/WB Digital Media Receiver 2.7" Display

$299.99
SKU:
PMX-2
Weight:
5.00 LBS
Availability:
Usually ships within 2 days depending on stock
Shipping:
Free Shipping
Quantity:

Product Description

The PMX-2 compact digital media receiver is designed for marine and motorsports applications.

The PMX-2 features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such Pandora control capabilities and Bluetooth audio steaming with album art support for Apple and Android products, this unit becomes a true command center of any system.

Output flexibility comes with a 4x50W @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of after-market amplifiers for more power and output. Add-in the EEPROM memory system, custom GUI interface, and wired remote expansion capabilities and you have the only media receiver you'll ever need.

  • ISO8846/SAE J1171 Ignition Protection Certified
  • Pandora Internet Radio
  • A2DP and AVRCP Bluetooth Wireless Streaming
  • FCC, CE, IC, and C-Tick Certified
  • Multi Region Radio Frequencies
  • Low Voltage Warning Alert
  • AUX and USB Inputs with USB Charging
  • On Board Punch EQ Control
  • iPod playback with on-screen display
  • Independent Subwoofer Level Control
  • Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
  • IPX6 Marine Grade
  • 7-Band Graphic EQ
  • 2.7" full color display w/ auto dimming backlightning
  • AM / FM / WB Tuner
  • Zone Control: 1 Zone / 1 Source (F/R or Sub)
  • *Antenna not included
  • 2 Year Warranty

Pandora®

Pandora®

Pandora® (also known as Pandora Internet Radio) is a music streaming

and automated music recommendation service.

 Built In Bluetooth®

Built In Bluetooth®



Made for Android Made for iPod/iPhone     USB Playback





FM TUNER
Sensitivity
8 dB
AM TUNER
Frequency Range
530 kHz - 1710 kHz
AM TUNER
Usable Sensitivity
40 dB
RCA Output Voltage
4 V
RCA Output Impedance
500Ω
Operating Voltage
10.5 V - 16 V
Speaker Impedance
2-Ohms
Fuse Rating
20 A
Dimensions (HxWxD)
Width 4.5" (11.5cm)
Face Depth 1.5" (3.8cm)
Mount Depth 2.9" (7.4cm)
Height 4.2" (10.6cm)
USB Capacity
32Gb max
999 Folders max
999 Songs max
MEDIA PLAYER
Audio Format Compatibility
MP3, WMA

TUNER

Compatible Remotes
PMX-1R
PMX-0R
(3 Remote Limit, 100 ft Total Wired Distance)
Android Compatibility
Bluetooth® Only

SPEAKER OUTPUTS

Device Type
Digital-Media Receiver
Pandora® Internet Radio
Yes
Bluetooth®
Yes
3.0+EDR, A2DP 1.3
WB TUNER
Frequency Range
162.40 - 162.55
(US & Canada)
TUNER
Number Of Presets
18 FM / 12 AM / 6 WB
USB Version
2.0
USB Charging
(Yes/No)
Yes
Steering Wheel Control Ready
No
Frequency Response
20 Hz - 20 kHz
Multi-Zone/Multi-Source
No
FM TUNER
Frequency Range
87.5 MHz - 107.9 MHz
Power Output
CEA-2006 Power Rating
25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω Peak
≤1.0% THD+N
Clock
Yes
Speaker Outputs
Yes
Made for iPod Models
iPod Touch (5th generation)
iPod Touch (4th generation)
iPod Nano (7th generation)
iPod Nano (6th generation)

RCA OUTPUTS

Display Size
2.7" Color TFT
SiriusXM-Ready®
No
USB Output Current
1A

FEATURES

Made for iPhone Models
iPhone 7 Plus
iPhone 7
iPhone 6s Plus
iPhone 6s
iPhone 6 Plus
iPhone 6
iPhone 5S
iPhone 5C
iPhone 5
iPhone 4S
iPhone 4
iPhone 3GS
Apple®/Android™ Compatible
(Yes/No)
Yes
AUX Input
No

Warranty Information

Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
• All Speakers – 1 Year
• Signal Processors – 1 Year
• PRIME Amplifiers – 1 Year
• PUNCH Amplifiers – 1 Year
• POWER Amplifiers – 2 Years
• Any Factory Refurbished Product – 90 days (receipt required)

What is Covered
This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered
This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered
1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties
Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service
Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty
This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA
The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.

Ship to: Electronics and Speakers
Rockford Corporation
AJR International
300 Regency Dr.
Glendale Heights, IL 60139

NOTICE: Products shipped to the above addresses without an RA# will be refused and shipped back.
